金属密封设计方案
Metal Sealing Design
CI-OD127*3.96*0.64mm-Alloy718-SAAH-Ag30/50
工作条件 Operating Conditions
| 应用 Application | Oil & Gas |
| 密封介质 Sealed Medium | Gas |
| 工作压力 Operating Pressure | 15,000psi |
| 工作温度 Operating Temperature | -20°C to +180°C |
| 压力方向 Pressure Direction | Internal |

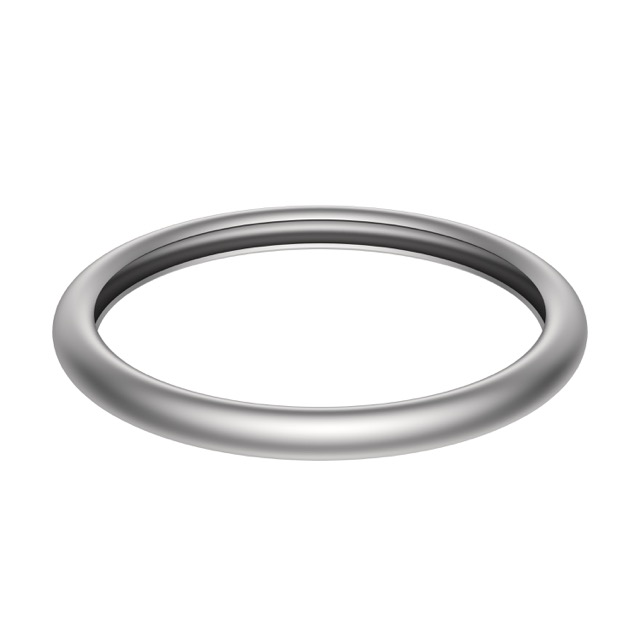

密封圈数据 Seal Data

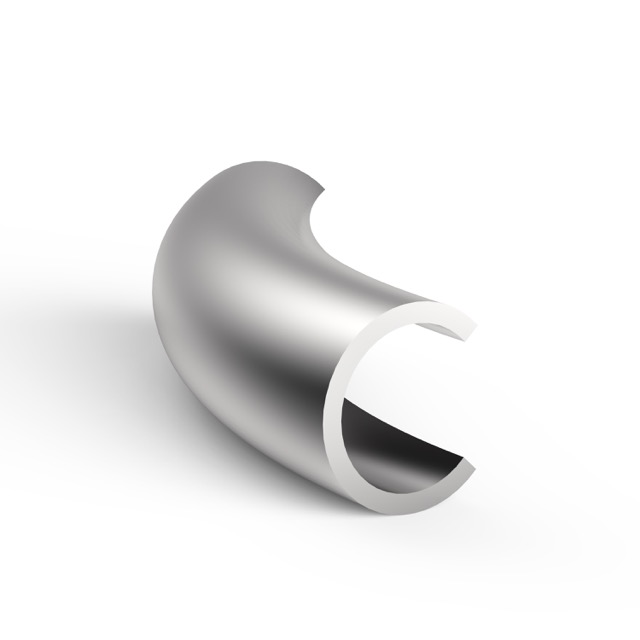

| 密封圈类型 Seal Type | CI | |

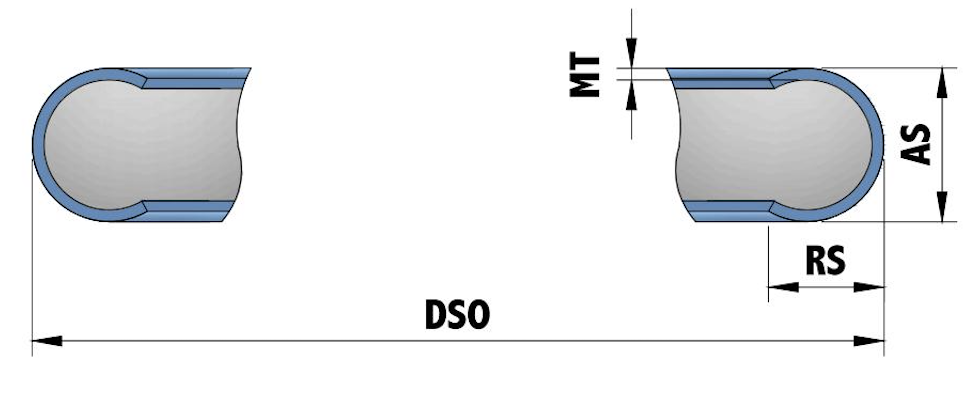

| 密封圈外径 Seal OD [DSO] [mm] | 127 | |
| 密封圈内径 Seal ID [DSI] [mm] REF | 119.08 | |
| 密封圈高度 Seal H [AS] [mm] | 3.96 | |
| 密封圈宽度 Seal W [RS] [mm] | 3.17 | |
| 密封圈基材厚度 Material Thickness [MT] [mm] | 0.64 | |
| 密封圈中心径 Seal Center Diameter [mm] REF | 123.04 | |
| 电镀 Plating | Ag | |
| 电镀厚度 Plating Thickness [μm] | 30-50 | |
| 材料 Wall Material | Alloy718 | |
| 弹簧材料 Spring Material | / | |
| 气密性 Leak Rate [mbar*l/s] REF | 1×10⁻⁸ | |
| 压缩率 Compression Rate [%] REF | 20% | |
| 线载荷 Seating Load [N/mm] | 115 | -20%+20% |
推荐槽规格 Recommended Groove Specs

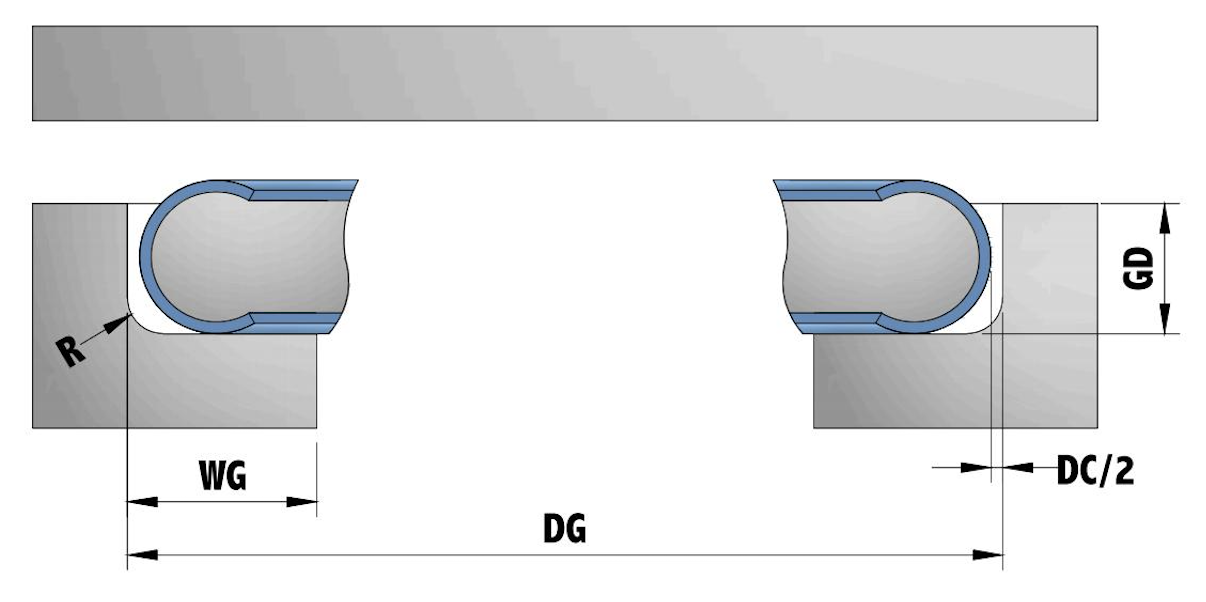

| 槽外径 Groove OD [DG] [mm] | 127.49 | |
| 槽宽 Groove W [WG] [mm] | 4.32 | |
| 槽深 Groove Depth [GD] [mm] | 3.18-3.30 | |
| 间隙 DC [mm] | 0.39 | |
| 倒角 R [mm] | 1.27 max | |
| 粗糙度 Roughness [Ra] | 0.8 | |
| 最低硬度 Minimum Hardness [HV] | ≥160 |
Note: All dimensions are before plating unless otherwise specified.
